SmartYIBA 7 Inch RFID Access Door Phone Intercom kits Password Code Keypad IR Camera Video Door Bell For Home Security System

SmartYIBA 7 Inch RFID Access Door Phone Intercom kits Password Code Keypad IR Camera Video Door Bell For Home Security System
  • Продавецwww.losangeleschargersvsnewyorkgiants.us
  • Список ценUS $36.31piece
  • Продажная ценаUS $36.31piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,1 (243)

Oписание продукта



NOTE:

For  Netherlands, Belgium, France, Spain, Austria, Italy, United Kindom, Poland, Czech Republic, Hungary, Ireland, Greece, Romania, Slovenia, Slovakia Republic, Sweden, Norway etc.European Union Countries,

If you select "Seller\'s Shipping Method" , then it does not have any taxes and extra cost for the order. The delivery time is about 10-15 working days. The order has tracking number. It is local UPS that will delivery the package to your door.

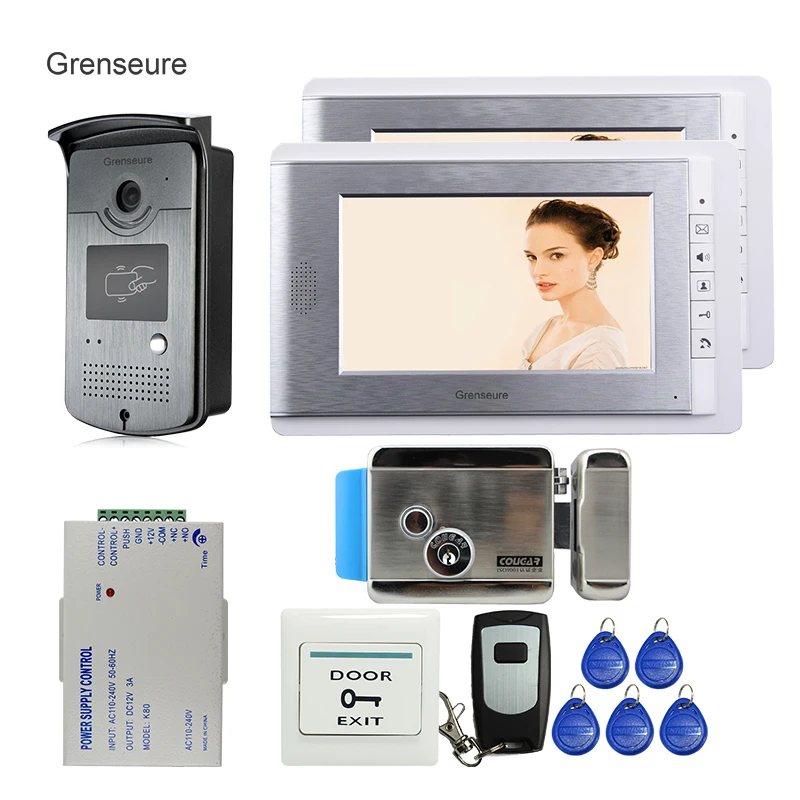

WIRED 7" TFT LCD HOME VIDEO INTERCOM SYSTEM

700 TVL Camera, Clearer Video!

3123-main







Description

This Hard-wired Video Door phone Intercom System consists of two7\'\' color TFT monitor and one door camera. Upgraded chips are adopted for highly stable performance and it has a nice appearance. It is your perfect choice to use in villas with 700 lines CMOS camera, which can achieve monitoring, dual-way intercom and unlocking. You also can monitor outside image even without people pressing the Monitor button on the Indoor unit.

In order to satisfy most of the customers, a complete doorphone system with 5 RFID keyfobs, a push release button, electric control lock and remote control module have been launched. With this full kit, it will be more convenient to build the full access control system for the home security. You can open the door lock either from indoor or outdoor through several methods.







Features

  • 7" TFT digital color LCD;
  • 16 melodies for ringing selection;
  • Show outdoor image manually.
  • Dual-way intercom;
  • Supports communication between two indoor monitors.
  • Monitor unlock control;
  • Clear night-viewing, 24 hours monitoring, calling, speaking and unlocking remote controlling etc.
  • TFT color screen with low power consumption, no radiation and high definition Resolution: 800*480.
  • Hands-free intercommunication.
  • Brightness, chroma and volume adjustable
  • Ring cancel function, do not disturb mode.
  • Comes with 5 RFID keyfobs, a push release button switch.
  • Support maximum 500 rfid keyfobs.
  • With micro-processing technology, auto-remote control, excellent performance and high Reliability.
  • This system supports 4(optional) and 4 outdoor cameras at most.(It needs a controller when install 2/3/4 outdoor cameras, please contact us if you want to install 2/3/4 cameras)



Details

It is a door phone which can show you what is going on outside doors on a clearly 7" full color screen of which The Volume, brightness and chroma can be adjusted to meet your need. It can function as a monitor, Press the button of Response/Monitoring, the screen will show you the picture outside doors, which makes you kown the outside world staying in the house.




aeProduct.getSubject()aeProduct.getSubject()

aeProduct.getSubject()

V70C-ad-1V70c-ad-3ID-main-2ID-main-3DXM201704121100













aeProduct.getSubject()

aeProduct.getSubject()

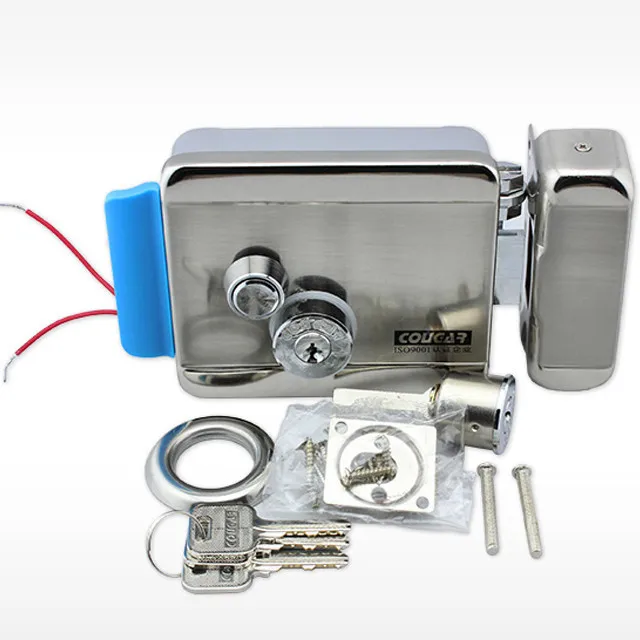

Electric Control Lock

This is a 12V Electric Lock Rim lock, unlock electronically or by hand, flexible switch, low electricity consumption. This Door Locks fit for different kinds of doors. When bolt extends out, the door can be locked normally.




aeProduct.getSubject()

  • NO Mode - (Locked while power is off);
  • Material: Stainless Steel;
  • Authority Certification: CE & MA Approved
  • Application: wood/iron doors;

  • Working Voltage: 12VDC

  • Working Current: 0.2-0.45A

  • Weight: 1700g;

  • Dimension (Face Plate): 120mm x 105mm x 35mm

  • Center distance: 60mm

  • Door distance: 35-55mm




Remote Control


If you purchase this Access Control System now, we will supply the following Remote control to you for free, when you want to go out, you just need to click this Remote control, then you can go out:



aeProduct.getSubject()

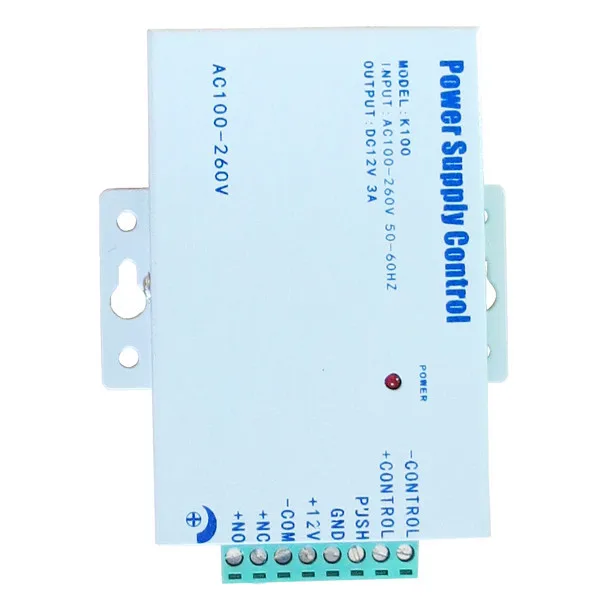

Power supply


This is a 110V-260V Access Control Power supply, it is made up of high quality electronic components and advanced international technology, it has anti-interference ability, provide very stable and reliable output in a various applications such as lock control/ controller control/ exit button/ RFID-ID Reader.etc.



  • It controls electric lock directly.

  • Can reduce the load of access controller, save wiring to reduce the hidden trouble

  • Based delay control circuit, lock time can be in 0-15 seconds

  • Automatic protection function, unexpected situations such as when the power supply
  • short-circuit occurs, the power may be temporarily disconnected or the fuse auto insurance line off

  • Operative device: E/M Lock, Access Controller, Exit Push Button.
aeProduct.getSubject()

Application


aeProduct.getSubject()



Note:
  • We provide 4-core or 5-core or 6-cables.(please see the packaging contents.)
  • The cables are very easy to be found in your local market as they are international standard.
  • We suggest testing the door phone kit with our original cable before installation, and the distance between the units should not be too close(3 meters distance may be OK) while testing, or it will cause noise sound.
  • The total length of the connection cables can NOT exceed 100 meters.
  • If your cable is too long and NOT thick enough,Not pure copper, it will cause many problems, please check the wiring requirement.
      0.2mm2 0.5mm2 1.0mm2
    Indoor to outdoor max distance30m50m100m
    Indoor to indoor max distance20m50m100m
    Outdoor to Electric lock max distance2m3m5m

More Products

aeProduct.getSubject()



Specification





Indoor Monitor
LCD Screen 7" TFT
Resolution800x480
Calling durationAbout 120 seconds
Monitor durationAbout 60 seconds
Power Consumption Working: 9W; Standby: 2W
Adapter Input AC 100-240V, 0.6A, 50/60Hz
Adapter Output DC 15V, 2000mA
Working Temperature -35 ~ 50 Celsius
InstallationWall mounting
MaterialPMMA and ABS
Size 240(L) * 150(W) * 26(H)mm
Net Weight500g

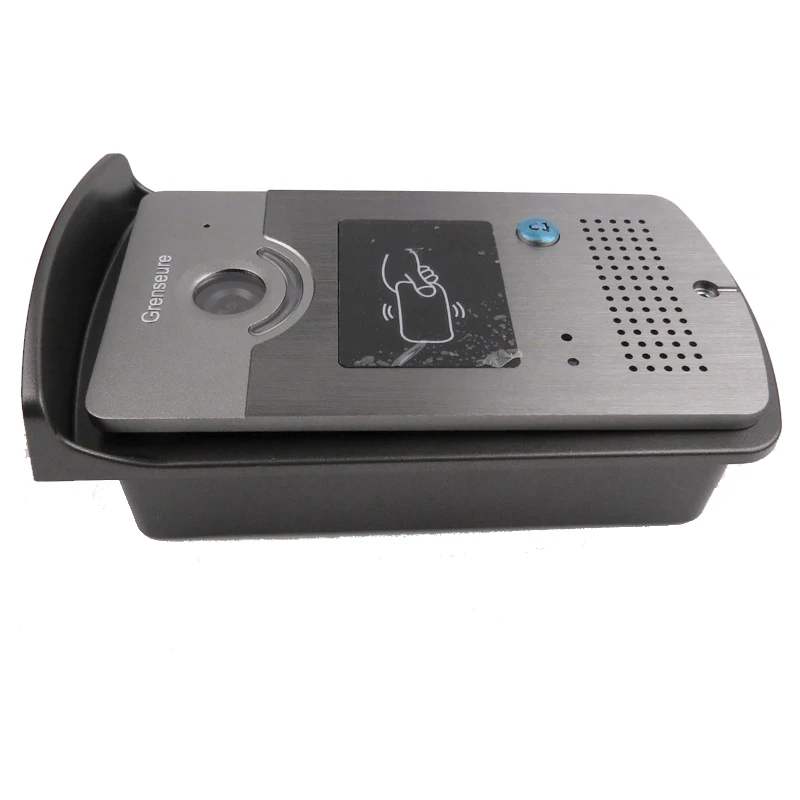

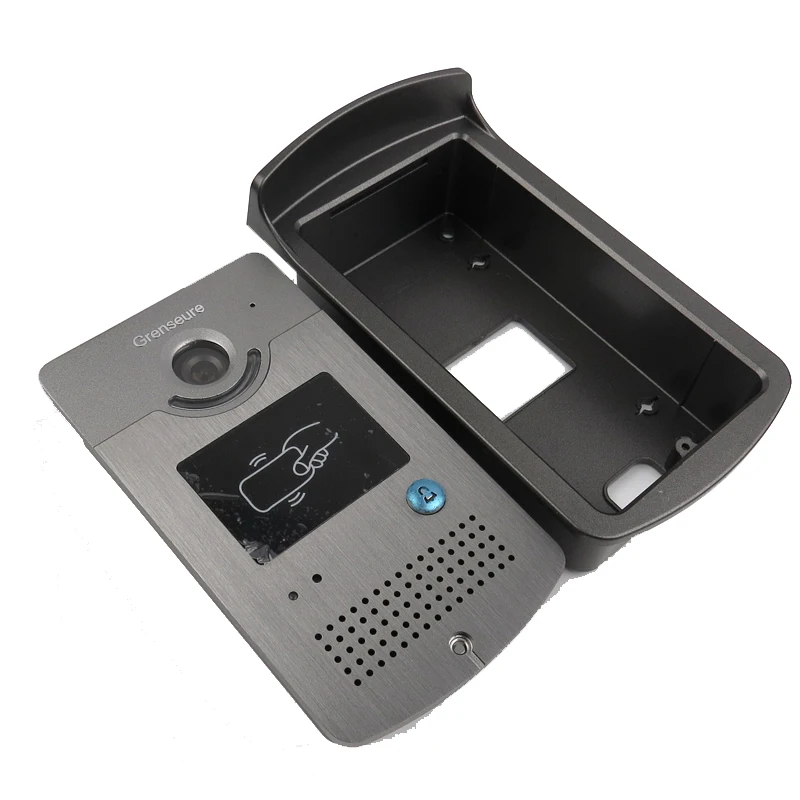

Outdoor Camera
Camera Lens1/3" CMOS
Resolution700TVL
illumination 0LUX / F1.2
Night VisionVisible within 1m
Power Supply DC 15V, 0.5A
Working Temperature -35 ~ 50 Celsius
CaseAlunimum panels
InstallationWall mounting
Size 174(L) *96(W) * 36(H)mm
Net Weight640g

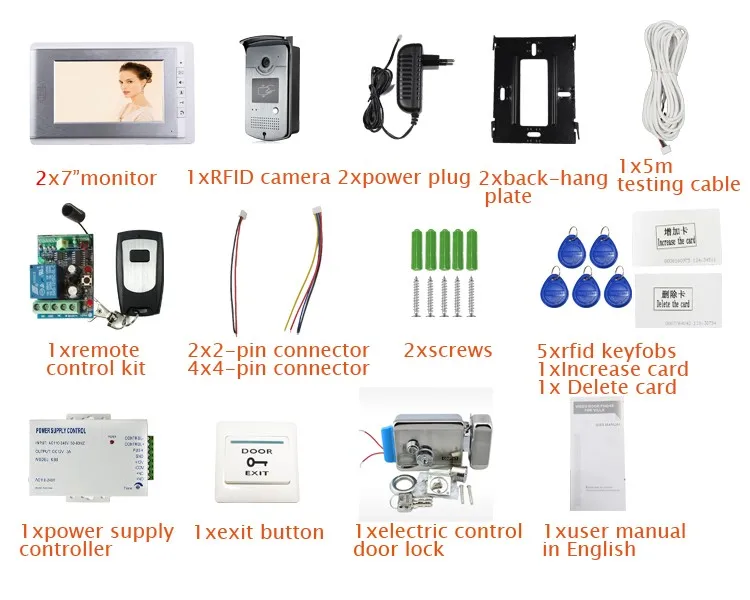

Package

NOTE: We have the user manual in English , French, Spanish and Russian language.
We send the user manual in English/Russian language in default, please leave us message if you want the user manual in other language.
