Wired 7 Record Screen Video Intercom Video Door Phone System RFID Access Doorbell Camera 8G SD Electrical lock Free Shipping

Wired 7 Record Screen Video Intercom Video Door Phone System RFID Access Doorbell Camera 8G SD Electrical lock Free Shipping
  • Продавецwww.losangeleschargersvsnewyorkgiants.us
  • Список ценUS $163.98piece
  • Продажная ценаUS $163.98piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,3 (422)

Oписание продукта

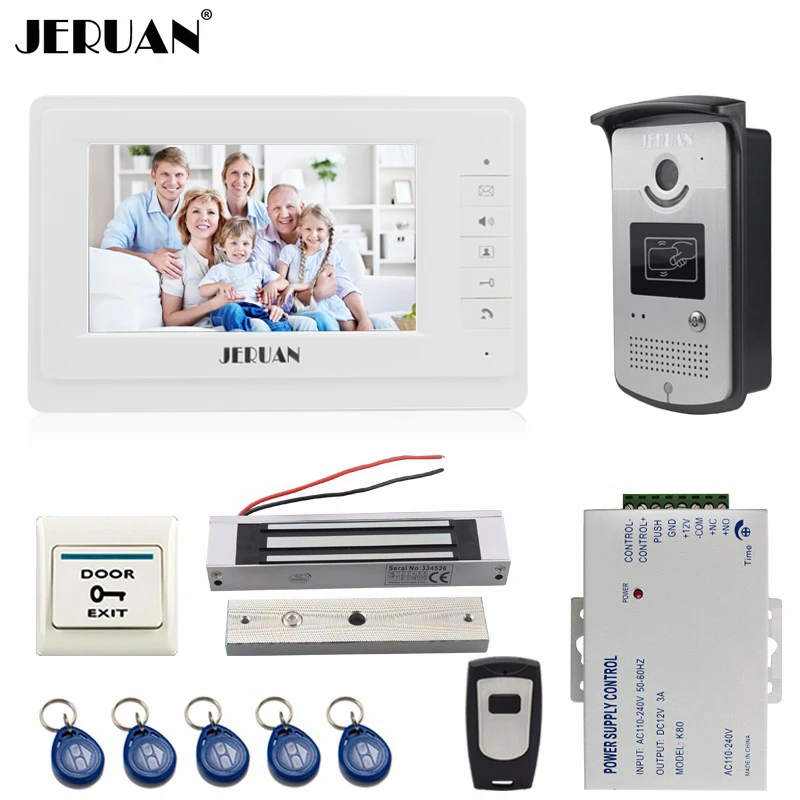

JERUAN 7 inch video door phone intercom system kit white monitor 700TVL RFID Access Camera 180Kg Magnetic lock FREE SHIPPING

1 Montion+ 700TVL  RFID Camera    +180Kg Magnetic lock    +Remote control

aeProduct.getSubject()

7`` color TFT LCD screen ,low power consumption without radiation ,real wide display wish high resolution.

How to handle a situation when someone (a stranger) is knocking on your door ?

It happens to all of us, sometimes regularly depending on the neighborhood. But if we hear an unexpected knock on your front door. The question is, what should we do ? Normally, we will do below things:

1. Open the door directly (It is not the best idea if you do not know who is outside. Obviously if you know it is the trusted person, then you can.)

2. Look out the door\'s window (if it has one) first to see who is knocking, if you don\'t recognize the person, you could ask through the door who they are and what they want. But the main thing is, it\'s best to look first, before blindly opening the door.

3. Ignore the knock on the door: If you are a woman(or child, older) at home alone, you may ignore the knock on the door. But if the stranger is a burglar – that person may go ahead and break-in if they think no-one is home. By making some noise or turning on a light, the stranger will know someone is home. On the other hand the person may continue to knock hoping to get your attention.

Now, the extremely effective and simple way is using our video door phone intercom speaker system.

Descriptions

The item you are watching is our new arrival video door phone system. The monitor is equipped with 7" high resolution color screen and the camera is 700TVL, which will enable you to see clearly who is at the door. The camera mounted at the outside of the door allows you to talk outside and the people at outside can also talk to you. This 2-way communication is an inexpensive and effective way to talk with the stranger at the door without actually opening the door. You will experience great benefit from this video door phone system. Besides, both of the outdoor unit and indoor unit have good appearance and modern design, which can also be used a decoration of your house. It is a good choice for your home security and intercom.
This item contains 1 outdoor unit and 1 indoor unit, it supports 1 outdoor cameras and 4 indoor monitors at most. If you need more cameras and monitors, please feel free to contact us for quotation.

Feature:

  • 7" TFT digital color LCD;
  • 24 melodies for ringing selection;
  • Show outdoor image manually.
  • Dual-way intercom between the outdoor unit and indoor monitor.
  • Monitor unlock control;
  • Clear night-viewing, 24 hours monitoring, calling, speaking and unlocking remote controlling etc.
  • TFT color screen with low power consumption, no radiation and high definition Resolution: 800*480.
  • Hands-free intercommunication.

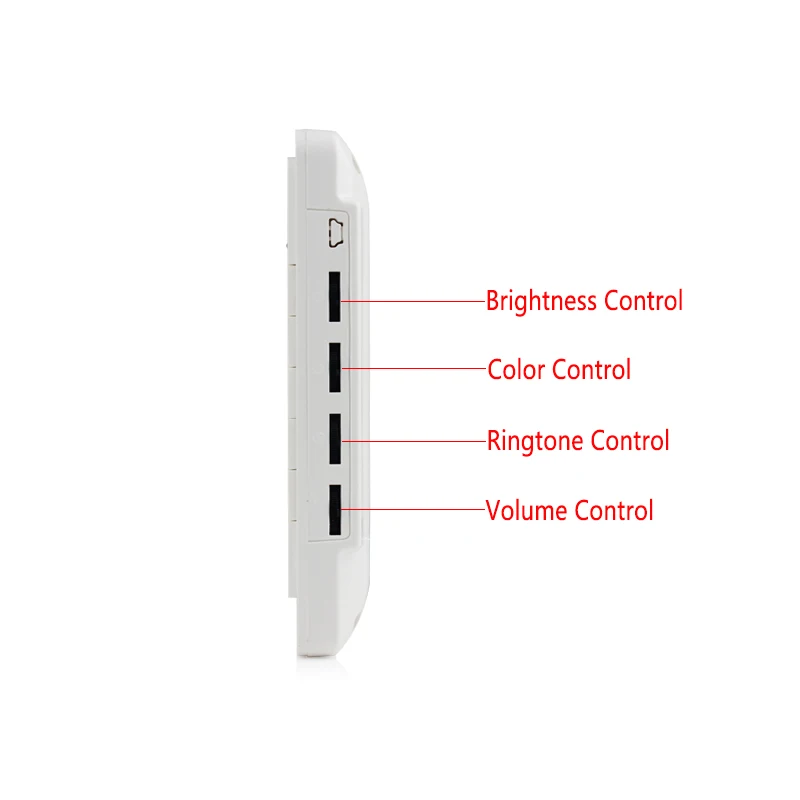

  • Brightness, chroma and volume adjustable
  • Ring cancel function, mute mode, do not disturb mode.
  • Comes with 5 RFID keyfobs, a push release button switch.
  • Supports maximum 500 rfid keyfobs
  • With micro-processing technology, auto-remote control, excellent performance and high Reliability.
  • Additional monitor available up to 4(optional) and 3 outdoor cameras at most.(It needs a controller when install 2/3 outdoor cameras, please contact us if you want to install 2/3 cameras)

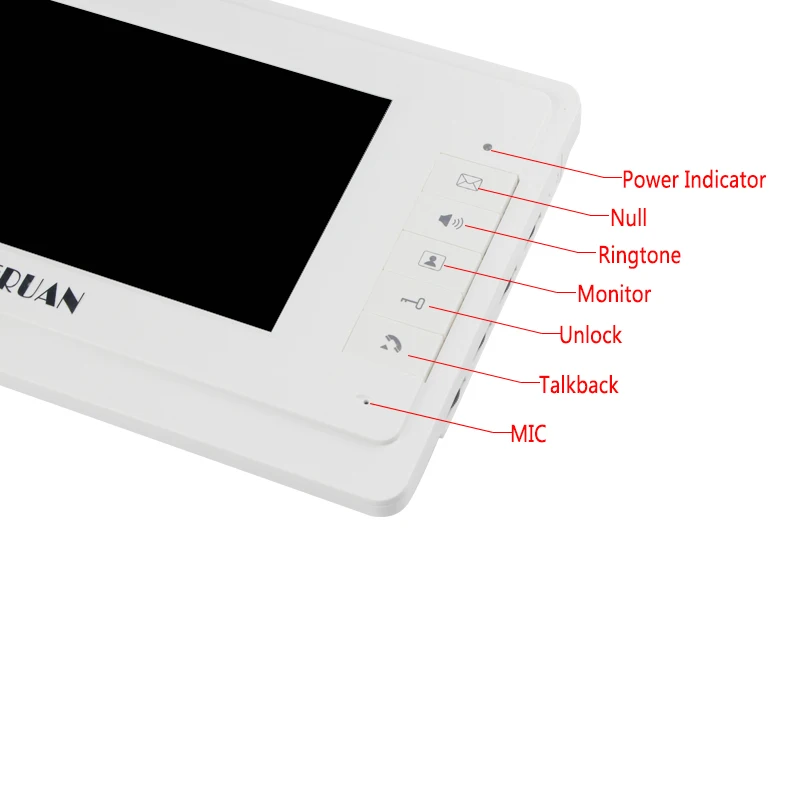

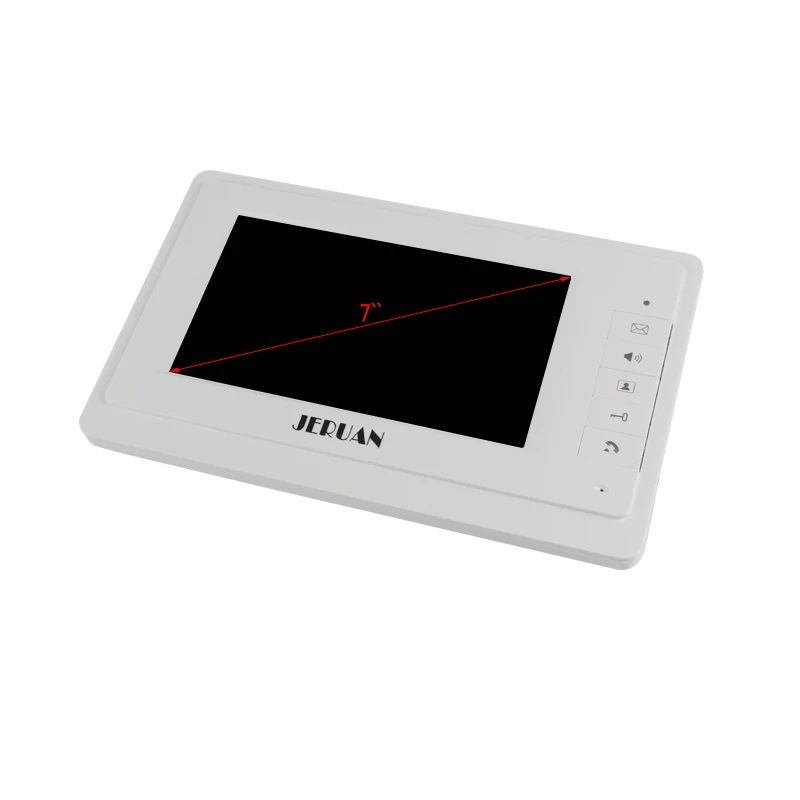

Indoor Unit Specification:

  • Screen size:7”(16:9 display)
  • Resolution: digital:800(RGB)×480Pixel
  • Visual angle: up 50 degree, down 70 degree, left or right 70 degree
  • Brightness: 200cd/centiare
  • Ringtone: chorded polyphonic ringtone
  • Sensitivity: 56db
  • Signal system: PAL/NTSC (optional)
  • Input voltage: AC 100V-240V ~ 50Hz/60Hz
  • Overall Power Consumption:≤6W(400mA)
  • Stand-by Power Consumption:<1.1W
  • Power Adapter Specifications: DC 15V 1000-1500mA
  • Talk Time Delay: 120S±10%
  • Monitor Time Delay: 40S±10%
  • Effective distance:200M(4×0.75M centiare)
  • Operating Temperature:-20~+60 degree
  • Relative humidity:10%~90%(KH)
  • Indoor unit installation method: wall-mounted type

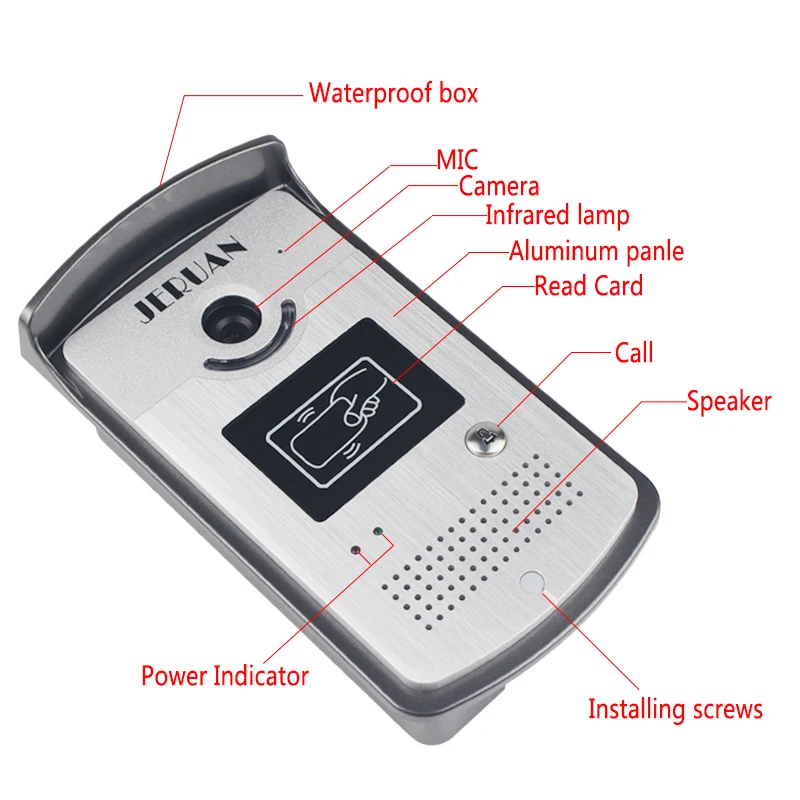

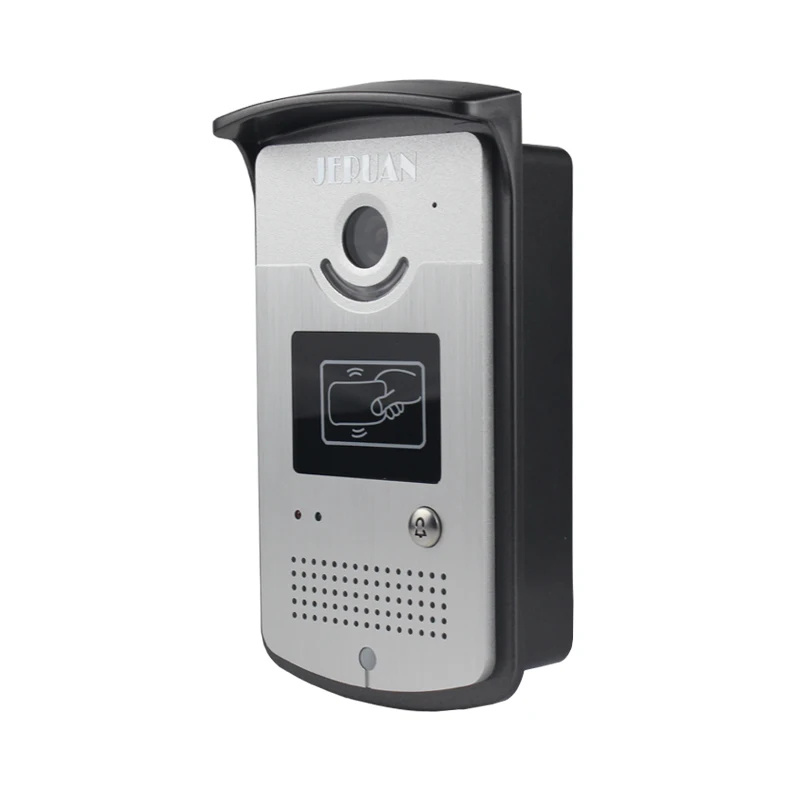

Outdoor Unit Specification:

  • Infrared lamp lighting distance: approximate 4 meters
  • Gain control: auto
  • Resolution: 700  lines
  • Talk time delay: 120S±10%
  • Image transmission distance: approximate 200 meters
  • Visual angle:  92
  • KW: <2W
  • Power: DC 15V (provided by the extension phone directly)
  • Camera : High definition and colorful CMOS/CCD(optional)
  • Outdoor infrared night vision function: 10 LUX infrared
  • Operating Temperature:-20~+60 degree
  • Outdoor unit installation method: embedded or wall-mounted type
  • Tamper alarm
  • Touch panle
  • waterproof

aeProduct.getSubject()

aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()

aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()

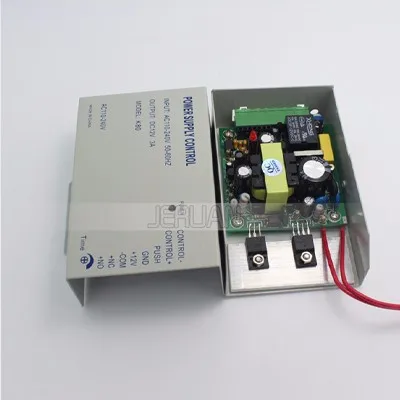

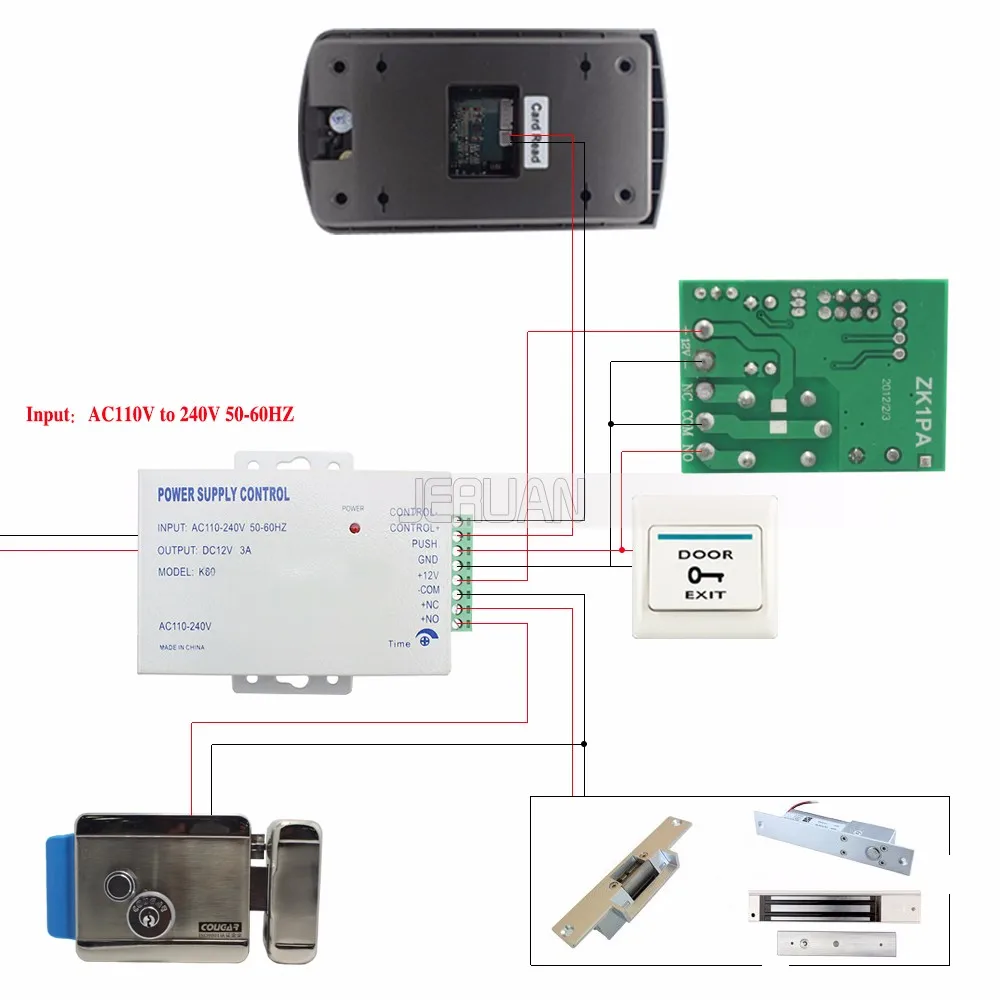

Power supply:



This is a 110V-240V Access Control Power supply, it is made up of high quality electronic components and advanced international technology, it has anti-interference ability, provide very stable and reliable output in a various applications such as lock control/ controller control/ exit button/ RFID-ID Reader.etc.

  1. It controls electric lock directly.

  2. Can reduce the load of access controller, save wiring to reduce the hidden trouble

  3. Based delay control circuit, lock time can be in 0-15 seconds

  4. Automatic protection function, unexpected situations such as when the power supply

  5. short-circuit occurs, the power may be temporarily disconnected or the fuse auto insurance line off

  6. Operative device: E/M Lock, Access Controller, Exit Push Butto

aeProduct.getSubject()

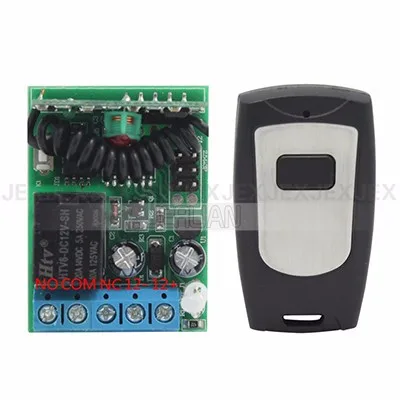

Remote Control:



If you purchase this video intercom system now, we will supply the following Remote control to you for free, when you want to go out, you just need to click this Remote control, then you can go out:

NOTE:The remote control without batteries

aeProduct.getSubject()

Electric Magentic lock

It is a High-performance   180kg Holding Force electric magnetic lock which suit for many access control system. This electric lock can meet your need perfectly!



Voltage: 12V DC
Mode: NC (locked whilst power supply is operating), fail safe mode
Application: wood, iron doors
Main body dimensions: 171 x 39.2 x 22mm



Pack includes: electric magnetic lock, installation diagrams
Construction: stainless steel.
Waterproof version, can work outside
Performance Testing: 1000000 times aging test
Safety function: Built-in voltage spike suppressor
Anti-Residual Magnesium Designed
Weight: 1.3kg

aeProduct.getSubject()

aeProduct.getSubject()

aeProduct.getSubject()

Note:
The cables are very easy to be found in your local market as they are international standard.
We suggest testing the door phone kit with our original cable before installation, and the distance between the units should not be too close(3 meters distance may be OK) while testing, or it will cause noise sound.

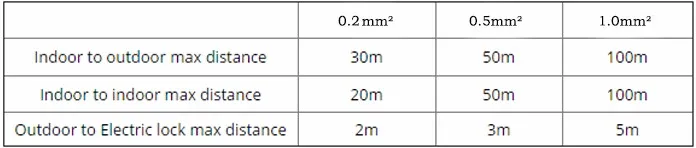

The total length of the connection cables can NOT exceed 100 meters.
If your cable is too long and NOT thick enough,Not pure copper, it will cause many problems, please check the wiring requirement.


aeProduct.getSubject()



Specification:

Outdoor Camera
Camera Resolution
700TVL
Night Vision Distance
More than 2 meters
Working Temperature
-20 degrees ~ +60 degrees
Intensity of Illumination
0.01 lux
Lens
2.3mm
Dimension
174mm(L) x96mm(W) x 36mm(H)
Installation
Surface mounted
Material
METAL ABS
Net Weight(g)
400
Model
C2V
Indoor Monitor
Screen
7" LCD Digital 4:3 Display
Effective Pixels
800 x 480
Delay Calling Time
120s ± 10%
Delay monitoring time
40s ± 10%
Adapter Input
AC100 - 240V 50-60HZ
Adapter Output
DC15V
Unit Consumption
Less than 6W 400mA, standby than 1.1W
Working Temperature
-20 degrees ~ 60degrees
Installation
Wall mounted
Dimension
240mm(L) x 150mm(W) x25mm(H)
Weight
400G
Model
714

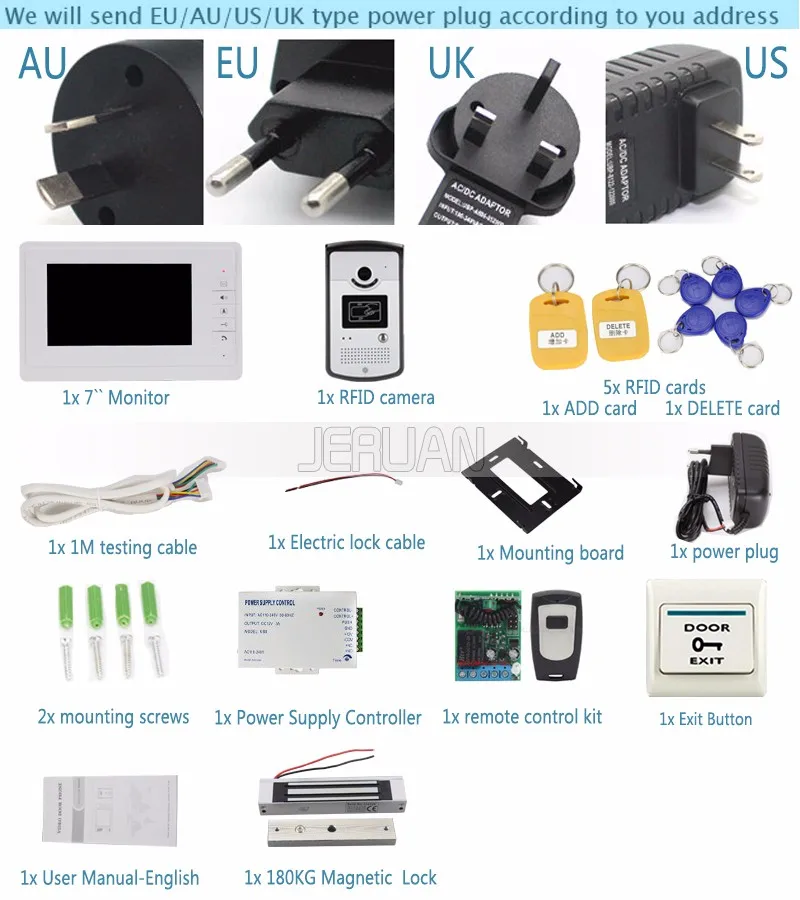

What\'s in the box:

aeProduct.getSubject()

aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()
