JERUAN Home 7`` LCD Video door Phone Entry Intercom System kit waterproof RFID Access Camera + 700TVL Analog Camera + E lock

JERUAN Home 7`` LCD Video door Phone Entry Intercom System kit waterproof RFID Access Camera + 700TVL Analog Camera + E lock
  • Продавец
  • Список ценUS $178.60piece
  • Продажная ценаUS $178.60piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,7 (919)

Oписание продукта

901-C1 GL

JERUAN NEW 7 inch LCD Video Intercom Door Phone System 1 Monitor 1 RFID Access Camera + 700TVL Analog Camera In Stock

1 monitor + 1 Access Camera + 700 TVL camera + 1 Exit Button




The item you are watching is our new arrival video door phone system ,This allows you can see who visited your house.

The monitor is equipped with 7" high resolution color screen and the camera is 700TVL, which will enable you to see clearly who is at the door. The camera mounted at the outside of the door allows you to talk outside and the people at outside can also talk to you. This 2-way communication is an inexpensive and effective way to talk with the stranger at the door without actually opening the door. You will experience great benefit from this video door phone system. Besides, both of the outdoor unit and indoor unit have good appearance and modern design.  It is a good choice for your home security and intercom.

This item contains 1 indoor unit and 1 outdoor unit+700TVL Camera.
  •         TFT color screen with low power consumption, no radiation and high definition Resolution: 800*480.
  •         Hands-free intercommunication.
  •         Brightness, chroma and volume adjustable
  •         Ring cancel function
  •         With micro-processing technology, auto-remote control, excellent performance and high Reliability.
  •         Additional monitor available up to 4(optional) and 3 outdoor cameras at most.(It needs a controller when install 2/3 outdoor cameras, please contact us if you want to install 2/3 cameras)
  •         7" TFT digital color LCD;
  •         24 melodies for ringing selection;
  •         Show outdoor image manually.
  •         Dual-way intercom;
  •         Monitor unlock control;
  •         Clear night-viewing, 24 hours monitoring, calling, speaking and unlocking remote controlling etc.

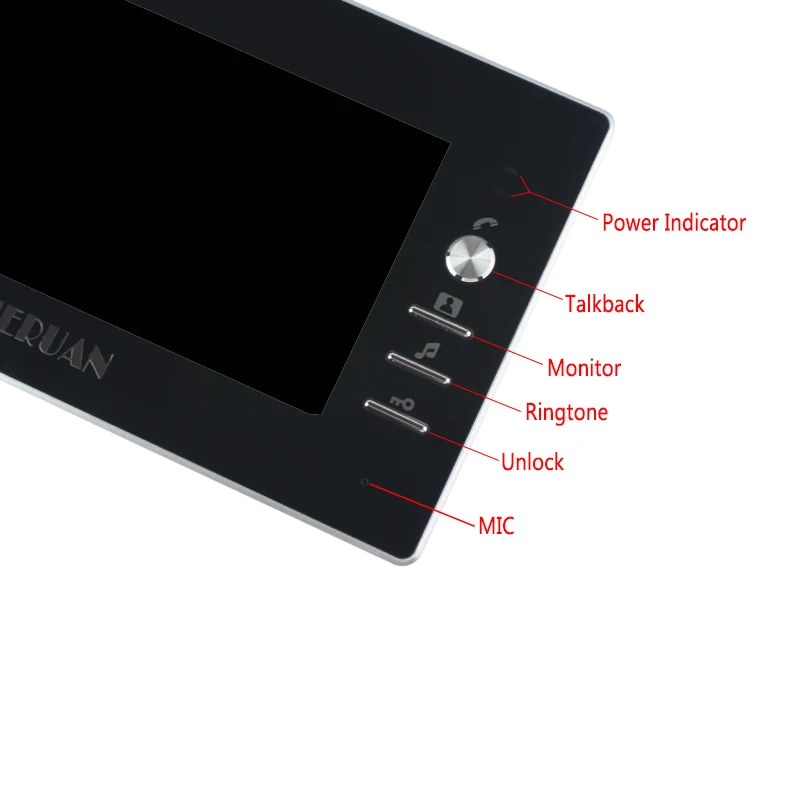

Indoor Unit Specification:

Screen size:7”(16:9 display)
Resolution: digital:800(RGB)×480Pixel
Visual angle: up 50 degree, down 70 degree, left or right 70 degree
Brightness: 200cd/centiare
Ringtone: chorded polyphonic ringtone
Sensitivity: 56db
Signal system: PAL/NTSC (optional)
Input voltage: AC 100V-240V ~ 50Hz/60Hz
Overall Power Consumption:≤6W(400mA)
Stand-by Power Consumption:<1.1W
Power Adapter Specifications: DC 15V 1000-1500mA
Talk Time Delay: 120S±10%
Monitor Time Delay: 40S±10%
Effective distance:200M(4×0.75M centiare)
Operating Temperature:-20~+60 degree
Relative humidity:10%~90%(KH)
Indoor unit installation method: wall-mounted type
Outdoor Unit Specification:
Infrared lamp lighting distance: approximate 4 meters
Gain control: auto
Resolution: 700  lines
Talk time delay: 120S±10%
Image transmission distance: approximate 200 meters
Visual angle:  92
KW: <2W
Power: DC 15V (provided by the extension phone directly)
Camera : High definition and colorful CMOS/CCD(optional)
Outdoor infrared night vision function: 10 LUX infrared
Operating Temperature:-20~+60 degree
Outdoor unit installation method: embedded or wall-mounted type





Remote Control:
If you purchase this video intercom system now, we will supply the following Remote control to you for free, when you want to go out, you just need to click this Remote control, then you can go out:
NOTE:The remote control without batteries


Power supply:
This is a 110V-260V Access Control Power supply, it is made up of high quality electronic components and advanced international technology, it has anti-interference ability, provide very stable and reliable output in a various applications such as lock control/ controller control/ exit button/ RFID-ID Reader.etc.
  •  It controls electric lock directly.
  •  Can reduce the load of access controller, save wiring to reduce the hidden trouble
  •  Based delay control circuit, lock time can be in 0-15 seconds
  •  Automatic protection function, unexpected situations such as when the power supply
  • short-circuit occurs, the power may be temporarily disconnected or the fuse auto insurance line off
  •  Operative device: E/M Lock, Access Controller, Exit Push Button.


Electric Control Lock:
This is a 12V Electric Lock Rim lock, unlock electronically or by hand, flexible switch, low electricity consumption. This Door Locks fit for different kinds of doors. When bolt extends out, the door can be locked normally.
  • NO Mode - (Locked while power is off);
  • Material: Stainless Steel;
  • Authority Certification: CE & MA Approved
  • Application: wood/iron doors;
  • Working Voltage: 12VDC
  • Working Current: 0.2-0.45A
  • Weight: 1500g;
  • Dimension (Face Plate): 120mm x 105mm x 35mm
  • Center distance: 60mm
  • Door distance: 35-55mm


700TVL Analog Camera:
Pick-up Device:1/4\'\'CMOS
TV System:PAL/NTCS(Default PAL)
Horizontal Resolution:700TV Lines
Minimum Illumination:0.5LUX/F1.2
Infrared LED:24 pcs
Synchronous System:Internal Synchronization
Backlight Compensation:Auto
Auto Gain Control:Auto
White Balance:Auto
S/N Ratio:≥48dB
Gamma Correction:0.45
Video Output:1.0Vp - p/75Ω(BNC)
Operation Temperature:(-20)degree - (50)degree
Power Supply:DC12V 1000mA
D1 (5)





Outdoor Camera
Camera Resolution
Night Vision Distance
More than 2 meters
Working Temperature
-20 degrees ~ +60 degrees
Intensity of Illumination
0.01 lux
174mm(L) x96mm(W) x 64mm(H)
Surface mounted
Net Weight(g)
Indoor Monitor
7" LCD Digital 4:3 Display
Effective Pixels
800 x 480
Delay Calling Time
120s ± 10%
Delay monitoring time
40s ± 10%
Adapter Input
AC100 - 240V 50-60HZ
Adapter Output
Unit Consumption
Less than 6W 400mA, standby than 1.1W
Working Temperature
-20 degrees ~ 60degrees
Wall mounted

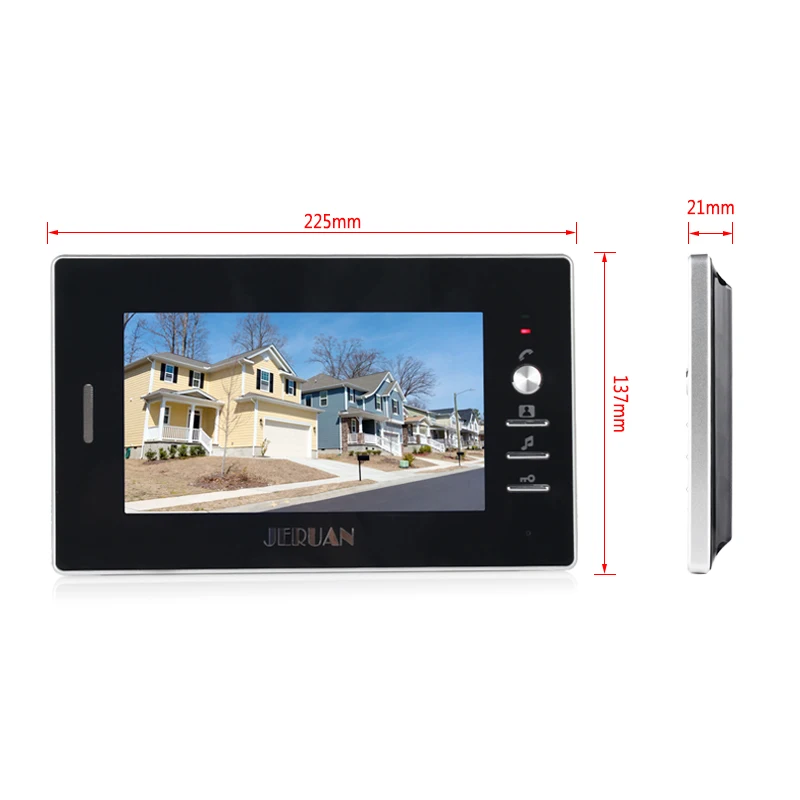

225mm(L) x 150mm(W) x21mm(H)


What\'s in the box:
